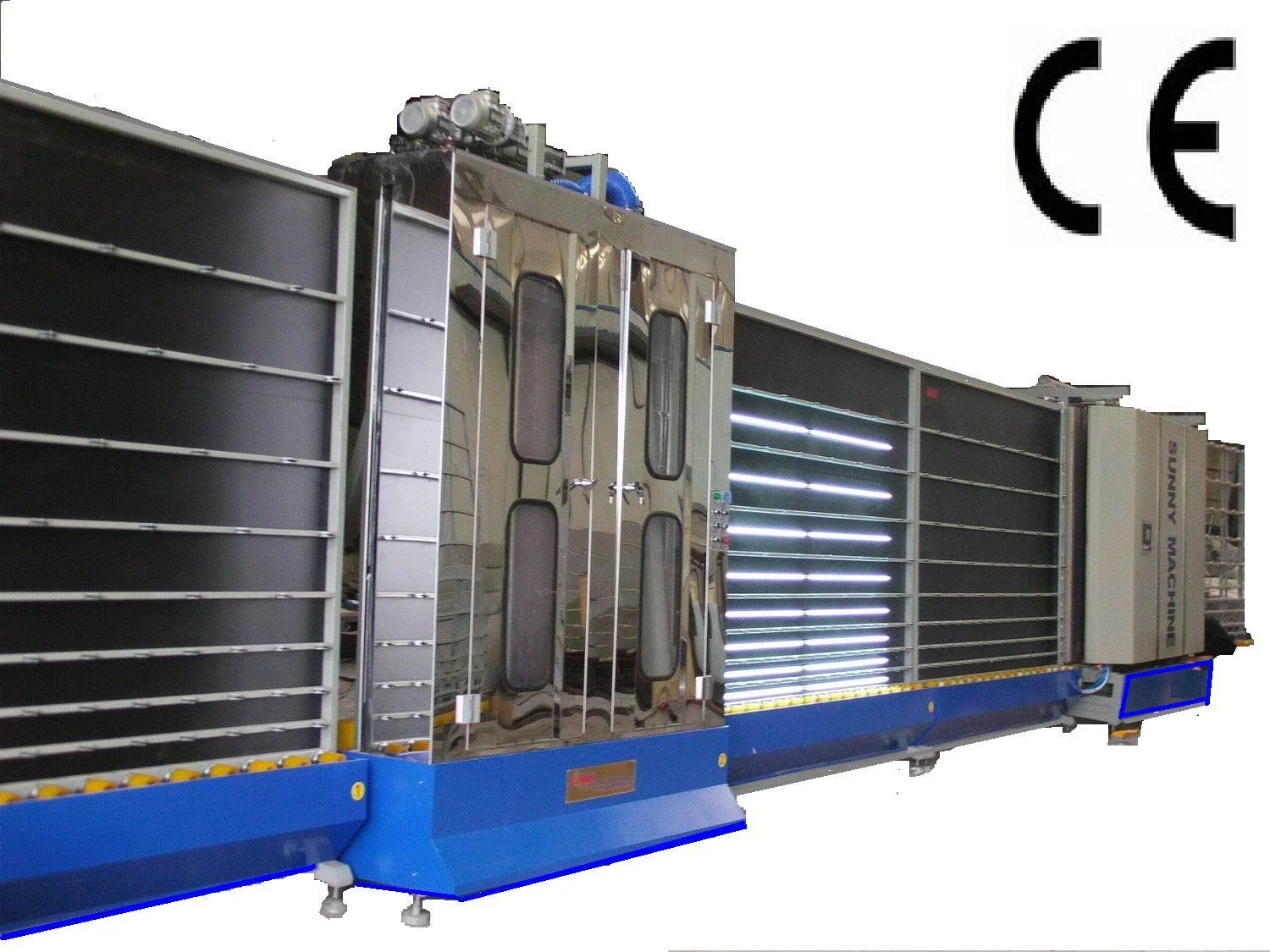

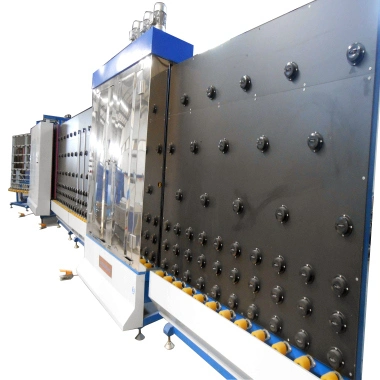

Automatic Insulating Glass Making Machine/ Insulating Glass Machine
Functions characteristics:
Shape glass LOW-E insulating glass production line
Automatic control for LOW-E glass (2-brush treatment for LOW-E)
Automatic adjust function for pressing with hydraulic compression
Titling table with hydraulic pressure
Monitor using system temperature/speed/production volume
Mechanical trouble cheek
Whole line control function with 1 monitor
Technique parameter:
Max. Glass size 2500*3500mm
Min. Glass size 300500mm
Glass thickness 3-50mm
Thickness of washing glass UP TO 60mm
Max. In washing section 12m/min
Max. In accelerating 50m/min
Brush 4pair(LOW-E)
Power voltage 3p 41.5kw(380V)/50-60Hz
Size of line 25000*2560*3380mm
Power rate 20.6KW
Contact: Awen Yin
Mob: 0086 15063343341
IG Production Line Advanced Design Proposal:
1. Air float glass cutting table (semi-automatic or CNC cutting)
2. Glass border polishing machine
3. Vertical I. G. Production line
4. Semi-automatic aluminum frame transfer machine
5. Rotated sealant spreading table
6. Two component sealant extruder
7. Butyl extruder
8. Automatic molecular sieve filling machine
9. Half-automatic aluminum spacer bending machine
10. I. G unit gas filling machine
Main Model for double glazing glass production line/ Insulating glass production line:
Functions characteristics:
Shape glass LOW-E insulating glass production line
Automatic control for LOW-E glass (2-brush treatment for LOW-E)
Automatic adjust function for pressing with hydraulic compression
Titling table with hydraulic pressure
Monitor using system temperature/speed/production volume
Mechanical trouble cheek
Whole line control function with 1 monitor
Technique parameter:
Max. Glass size 2500*3500mm
Min. Glass size 300500mm
Glass thickness 3-50mm
Thickness of washing glass UP TO 60mm
Max. In washing section 12m/min
Max. In accelerating 50m/min
Brush 4pair(LOW-E)
Power voltage 3p 41.5kw(380V)/50-60Hz
Size of line 25000*2560*3380mm
Power rate 20.6KW
Contact: Awen Yin
Mob: 0086 15063343341
IG Production Line Advanced Design Proposal:
1. Air float glass cutting table (semi-automatic or CNC cutting)
2. Glass border polishing machine
3. Vertical I. G. Production line
4. Semi-automatic aluminum frame transfer machine
5. Rotated sealant spreading table
6. Two component sealant extruder
7. Butyl extruder
8. Automatic molecular sieve filling machine
9. Half-automatic aluminum spacer bending machine
10. I. G unit gas filling machine
Main Model for double glazing glass production line/ Insulating glass production line:
Model | Max.Glass Size | Min.Glass Size | Glass Thickness | Power | Weight | Dimension |
LBZ2500 | 2500*3000mm | 300*500mm | 3-50mm | 25Kw | 8000Kg | 22000*2000*3380mm |
LBZ2200 | 2200*3000mm | 300*500mm | 3-50mm | 25Kw | 6500Kg | 20000*2000*3000mm |
LBZ2000 | 2000*2500mm | 300*500mm | 3-50mm | 20Kw | 6000Kg | 14000*1680*2800mm |
LBZ1800 | 1800*2500mm | 300*500mm | 3-50mm | 20Kw | 5000Kg | 14000*1680*2600mm |
LBZ1800G | 1800*2500mm | 300*500mm | 3-50mm | 12.8Kw | 4800Kg | 13500*1680*2600mm |
LBZ1600 | 1600*2000mm | 300*500mm | 3-25mm | 13.59Kw | 4000Kg | 12000*1250*2600mm |
