(Double Glass, Triple Glass) CE Igcc SGCC Psi Certification, Suitable For Window Reezer, Etc.

(double glazing, triple glazing) CE IGCC SGCC PSI Certified for window

Insulated glass is also called Hollow glass, or Double glazing unit, which is made of two or more PCS of glass glazing sheets which might be low e or reflective glas or normal float colored glass and use sealant gumming and aluminum spacers which was filled with desiccant together. Insulated glass/ Hollow glass/IGU/Double glazing glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight.

Insulated glass not only could get sound insulation, also it can save energy power. This kind of IGU can enhance a window's thermal insulation up to 3 times resulting in reduction of energy consumption of up to 75% compared to a single glazed unit.

Insulated glass/Hollow glass/IGU/Double glazing glass is made of two or more pieces of glass with the middle part separated by the hollow AL tube which is filled with the drier. The hollow glass part is filled with dry air or inert gas(argon gas) and sealed by butyl glue, sulfur glue or structural sealant.

Applications:
The insulated glass/ Hollow glass/IGU/Double glazing glass is widely used in glass curtain walls, doors, windows and place with glass in automobile, ships, aircrafts and instruments.
- Window and door
- Facades, cladding and curtain walls
- Automobile, train, vessel
- Refrigerator freezer

Specifications:
Insulated glass/ Hollow glass/IGU/Double glazing glass Production Capability:
Max Size: 2500mm x 3500mm (except for manual production)
Min Size: 180mm x 350mm
Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm
Glass thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
Color: low iron, light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, gold, bronze

Quality Standards:
GB/T11944, Chinese standard.
EN 1279, European Standard.
ASTM E 2190, American standard. IGCC certifiied.

Competitive Advantage:
Insulated glass/ Hollow glass/IGU/Double glazing glass Performance Features
1. The insulated glass/Hollow glass/IGU/Double glazing glass filled with the inert gas is excellent in heat and sound insulation, meeting the requirement for saving energy and environmental protection.
2. Hoarfrost and dew effect can be eliminated.
3. High wind pressure strength.
4. Not easy to be self exploded.
5. When choosing coated glass as the basal pieces, the coated layer will not come off.
6. Noise insulation.

Insulated glass/Hollow glass/IGU/Double glazing glass performance characteristics:

1. Insulated glass/Hollow glass/IGU/Double glazing glass is with low heat gain and low U value
2. Light transmission: Appropriate level of solar transmission and solar reflectance can be selected
3. Noise insulation: IGU/ Insulated glass/Hollow glass /Double glazing glass can reduce noise level by 30 DB or even to 50DB.
4. Condensing prevention: The IG units are designed to withstand down to -65degrees
5. Leak-proof: Primary and secondary sealants made in Dow corning, GE etc brands.

Coatings available:
Guaridan, PPG, AGC, Saint Gobain, Northglass, Pilkington...

Guarantee:
15 years' guarantee for buildings.

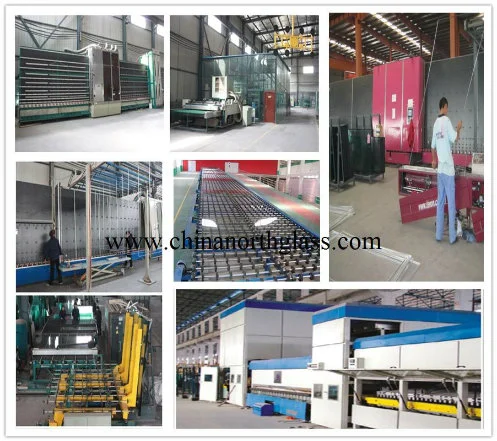

Factory Equipments and Certificates

(double glazing, triple glazing) CE Igcc SGCC Psi Certified for Window Reezer etc

Packaging & Loading Pictures

(double glazing, triple glazing) CE Igcc SGCC Psi Certified for Window Reezer etc

Certificate (double glazing, triple glazing) CE Igcc SGCC Psi Certified for Window Reezer etc

	Description of sample	Reflective Color	Visible Light(%)			Solar Energy(%)		U-Value(W/m 2 .k)		Shading Co.	SHGC
			Tran.	Refl.		Tran.	Refl.	Air	Ar
			Tran.	Outer	Inner	Tran.	Refl.	Air	Ar
Low E Glass	6XDB179+12A+6C	Neutral	71	11	12	36	28	1.6	1.3	0.48	0.41
	6XDN179+12A+6C	Neutral	70	11	11	35	39	1.6	1.3	0.45	0.39
	6WCL184+12A+6C	Neutral	75	11	11	47	19	1.8	1.5	0.61	0.53
	6YEME0185+12A+6C	Neutral	76	11	11	47	23	1.7	1.4	0.62	0.54
	6YELE0178+12A+6C	Neutral	67	13	10	46	21	1.8	1.5	0.70	0.61
	6YENE0175+12A+6C	Neutral	66	11	12	34	30	1.6	1.3	0.46	0.40
	6YENE0168+12A+6C	Neutral	60	13	15	28	33	1.6	1.3	0.39	0.34
	6YENE0158+12A+6C	Neutral	54	17	15	28	34	1.6	1.3	0.38	0.33
	6XBL160+12A+6C	Blue	54	22	13	33	25	1.7	1.4	0.46	0.40
	6YERE2559+12A+6C	Blue	33	14	20	18	12	1.6	1.3	0.29	0.25
	6YERE2552+12A+6C	Blue	29	15	14	16	14	1.7	1.4	0.26	0.23
	6YERE2546+12A+6C	Blue	26	17	16	14	17	1.7	1.4	0.25	0.22
	6YERE2538+12A+6C	Blue	21	19	15	11	18	1.6	1.3	0.21	0.18
	6YENE2575+12A+6C	Blue	42	7	11	22	12	1.6	1.3	0.33	0.29
	6YENE2568+12A+6C	Blue	38	8	14	18	13	1.6	1.3	0.30	0.26
	6YENE2558+12A+6C	Blue	33	10	15	18	14	1.6	1.3	0.29	0.25
	6YENE2552+12A+6C	Blue	30	9	16	14	12	1.6	1.3	0.25	0.22
	6YENE2545+12A+6C	Blue	26	10	19	14	13	1.6	1.3	0.23	0.20
	6YENE2540+12A+6C	Blue	21	8	22	10	9	1.6	1.3	0.22	0.19
	6XDB171+12A+6C	Light Blue	60	12	11	28	27	1.6	1.3	0.38	0.33
	6XNE170+12A+6C	Light Blue	63	9	9	38	18	1.7	1.4	0.53	0.46
	6YENE0152+12A+6C	Light Blue	46	15	17	21	31	1.6	1.3	0.30	0.26
	6YENE0145+12A+6C	Light Blue	41	17	19	19	33	1.6	1.3	0.28	0.24
	6YETE0166+12A+6C	Light Blue Green	63	11	11	24	36	1.6	1.3	0.31	0.27
	6XDB271+12A+6C	Blue Green	50	10	11	20	9	1.6	1.3	0.31	0.27
	6XDB279+12A+6C	Green	60	9	11	25	8	1.6	1.3	0.37	0.32
	6XDN279+12A+6C	Green	59	9	10	24	9	1.6	1.3	0.36	0.31
	6XBL260+12A+6C	Green	46	17	13	21	11	1.7	1.4	0.33	0.28
	6XRE245+12A+6C	Green	43	42	28	23	44	1.6	1.3	0.32	0.28
	6YERE2259+12A+6C	Green	46	22	20	20	13	1.6	1.3	0.31	0.27
	6YERE2252+12A+6C	Green	38	23	15	17	14	1.7	1.4	0.28	0.24
	6YERE2246+12A+6C	Green	34	24	13	15	15	1.7	1.4	0.26	0.22
	6YERE2238+12A+6C	Green	28	30	14	12	17	1.6	1.3	0.20	0.17
	6YENE2275+12A+6C	Green	56	9	11	24	9	1.6	1.3	0.36	0.31
	6YENE2268+12A+6C	Green	50	9	14	21	10	1.6	1.3	0.32	0.28
	6YENE2258+12A+6C	Green	46	13	15	20	11	1.6	1.3	0.30	0.26
	6YENE2252+12A+6C	Green	40	11	16	16	10	1.6	1.3	0.27	0.24
	6YENE2245+12A+6C	Green	35	13	19	14	10	1.6	1.3	0.24	0.21
	6YENE2240+12A+6C	Green	29	11	22	11	8	1.6	1.3	0.23	0.20
	6XSG238+12A+6C	Light Green	30	24	11	13	14	1.7	1.4	0.24	0.21
	6XNE270+12A+6C	Light Green	53	8	9	24	7	1.7	1.4	0.37	0.32
	6WDF166+12A+6C	Light Blue Grey	58	19	13	36	26	1.7	1.4	0.48	0.42
	6WDF164+12A+6C	Light Blue Grey	57	14	10	39	16	1.8	1.5	0.53	0.46
	6WDF360+12A+6C	Light Blue Grey	53	15	10	34	20	1.8	1.5	0.48	0.41
	6YECE0164+12A+6C	Light Blue Grey	57	18	10	36	23	1.8	1.5	0.49	0.43
	6YENE0140+12A+6C	Light Blue Grey	36	15	22	19	26	1.6	1.3	0.29	0.25
	6WDF155+12A+6C	Blue Grey	47	17	10	31	19	1.8	1.5	0.42	0.37
	6WDF140+12A+6C	Blue Grey	37	23	12	23	24	1.8	1.5	0.33	0.29
	6WDF352+12A+6C	Blue Grey	46	21	10	28	26	1.8	1.5	0.4	0.35
	6WDF548+12A+6C	Blue Grey	42	32	18	25	37	1.8	1.5	0.34	0.3
	6XSG138+12A+6C	Silver Grey	35	33	11	20	32	1.7	1.4	0.30	0.26
	6XRE145+12A+6C	Silver Grey	43	42	28	23	44	1.6	1.3	0.32	0.28
	6WDF340+12A+6C	Silver Grey	35	33	10	22	35	1.7	1.4	0.32	0.28
	6YERE0159+12A+6C	Silver Grey	54	31	20	31	39	1.6	1.3	0.41	0.36
	6YERE0152+12A+6C	Silver Grey	47	31	15	27	36	1.7	1.4	0.37	0.32
	6YERE0146+12A+6C	Silver Grey	41	33	14	23	38	1.7	1.4	0.33	0.29
	6YERE0138+12A+6C	Silver Grey	33	42	15	19	43	1.6	1.3	0.27	0.24
	6WDF560+12A+6C	Light Grey	53	19	11	33	25	1.8	1.5	0.44	0.38
	6XDB371+12A+6C	Grey	29	7	10	14	12	1.6	1.3	0.25	0.22
	6XDB379+12A+6C	Grey	35	7	10	19	12	1.6	1.3	0.30	0.26
	6XDN379+12A+6C	Grey	34	6	9	18	14	1.6	1.3	0.29	0.25
	6XSG338+12A+6C	Grey	17	12	11	11	13	1.7	1.4	0.22	0.19
	6XNE370+12A+6C	Grey	31	6	8	20	9	1.7	1.4	0.33	0.28
	6XBL360+12A+6C	Grey	27	9	12	17	11	1.7	1.4	0.30	0.26
6XRE345+12A+6C	Grey	21	14	27	12	17	1.6	1.3	0.22	0.19
6YESD0150+12A+6YELE0178	Grey	39	21	17	28	21	1.8	1.5	0.47	0.41
6YESD0130+12A+6YENE0175	Grey	24	24	17	12	21	1.6	1.3	0.26	0.22
6YECE0173+12A+6C	Grey	65	11	12	44	16	1.8	1.5	0.59	0.51
6YECE0156+12A+6C	Grey	50	17	10	30	21	1.8	1.5	0.44	0.38
Reflective Glass	6WCS108	Silver Grey	8	44	38	6	38	3.6	__	0.18	0.15
	6WCS120	Silver Grey	20	32	27	17	26	5.2	__	0.35	0.3
	6YESC0108	Silver Grey	8	44	27	6	37	3.7	__	0.23	0.20
	6YESC0114	Silver Grey	14	33	32	12	27	3.8	__	0.31	0.27
	6YESC0120	Silver Grey	20	27	29	17	23	4.3	__	0.38	0.33
	6YESC0132	Silver Grey	34	15	22	29	13	4.7	__	0.52	0.45
	6YESC0140	Silver Grey	40	11	19	34	10	4.8	__	0.58	0.50
	6WCS166	Light Grey	66	18	19	62	14	5.7	__	0.78	0.68
	6WCS136	Blue Grey	37	22	18	32	18	5.5	__	0.51	0.44
	6YESC0150	Blue Grey	50	8	16	45	7	5.0	__	0.68	0.60
	6YEAC0140	Blue Grey	40	23	8	32	18	4.6	__	0.53	0.46
	6YEAC0150	Blue Grey	50	26	6	41	17	4.9	__	0.61	0.53
	6YEAC0160	Blue Grey	59	24	11	52	16	5.1	__	0.71	0.62
	6YEAC0170	Blue Grey	70	22	20	67	15	5.2	__	0.83	0.72
	6YEAC2540	Blue	25	12	8	18	8	4.6	__	0.46	0.40
	6YEAC2550	Blue	32	14	6	23	9	4.9	__	0.51	0.44
	6YEAC2560	Blue	37	12	11	28	8	5.1	__	0.55	0.48
	6YEAC2570	Blue	44	11	20	34	8	5.2	__	0.61	0.53
	6YEAC2260	Blue Green	50	18	11	29	10	5.1	__	0.54	0.47
	6YEAC2270	Blue Green	59	16	20	33	9	5.2	__	0.60	0.52
	6YEAC2240	Green	33	19	8	18	10	4.6	__	0.44	0.38
	6YEAC2250	Green	42	20	6	23	11	4.9	__	0.49	0.43

(Double glass, triple glass) CE Igcc SGCC Psi certification, suitable for Window Reezer, etc.
